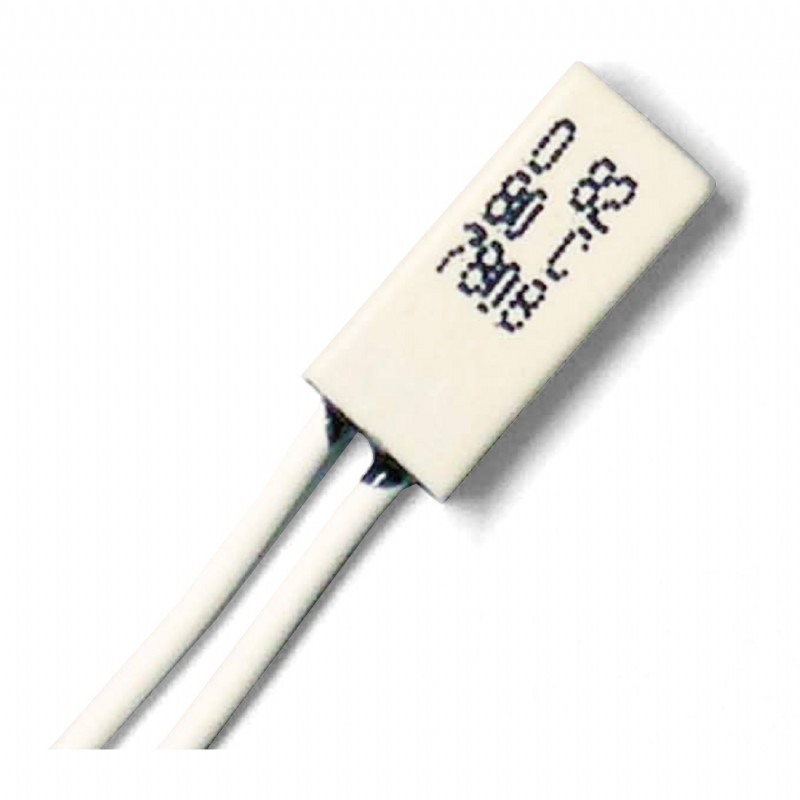

Bimetallic switch O

Area of Application
The thermo switch O is used whenever switch-on function is needed, caused by overheating or increasing temperature. Specific applications include: cooling fan, alarm signal, controller, timer.
Mounting brackets or clips available.

Function
The thermo switch O operates not current sensitive. Temperature detection is realized by a bimetal snapdisc. When the switch-on temperature TE is reached, the bimetal disk will snap over to close a contact system. After cooling down and reaching the cut-off temperature TA, the bimetal disk will automatically return to its initial position and open the contacts again.

Breaking capacity:	250 V; 1,0 A / 50 Hz
Min. current:	20 mA
Switching temperature:	50°C – 130°C (±10) in 5 Kelvin steps
Switching differential:	10 K to 60 K depending from switch on temperature
max. ambient temperature:	160°C / 200°C, 1 minute
Approvals:	VDE (EN 60730), conform to RoHS
