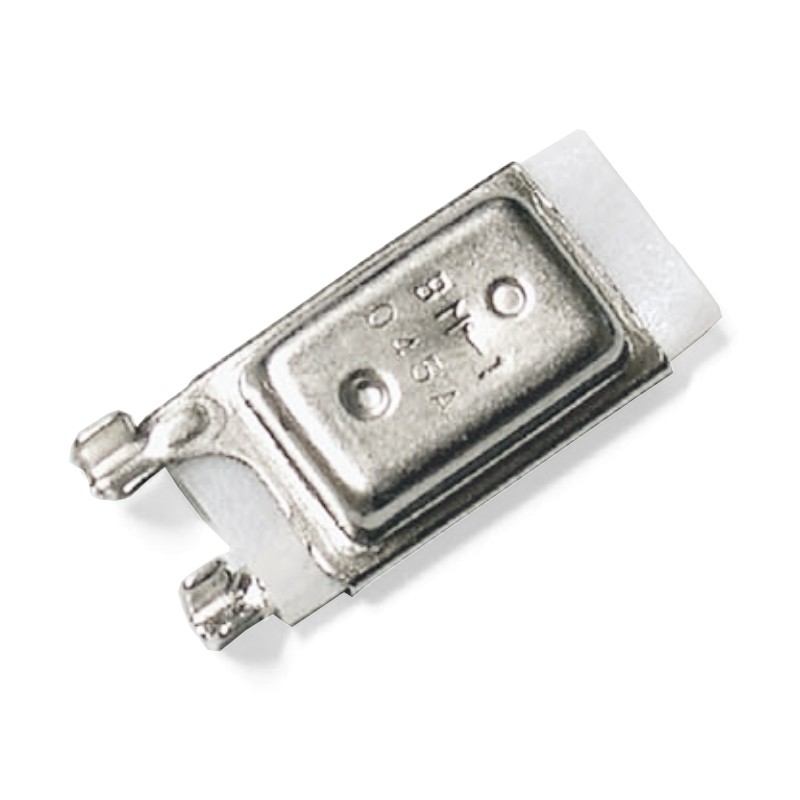

Bimetallic switch BM1

Area of Application
The thermal overload protector type BM-1 is an electromechanical safety device, which provides complete protection to your electrical equipments against over-heating and over-loading and mechanical malfunctions. After temperature cooling down the thermo switch closes it's contacts again (auto reset function).

Function
To protect household equipment, electrical motors, transformers, electrical ballast, etc.

Switching Temperature °C
Code	Open Temp.	Close Temp.	Tolerance
045	45°C ± 5	34°C	± 15
050	50°C ± 5	38°C
055	55°C ± 5	42°C
060	60°C ± 5	46°C
065	65°C ± 5	50°C
070	70°C ± 5	52°C
075	75°C ± 5	54°C
080	80°C ± 5	56°C
085	85°C ± 5	58°C
090	90°C ± 5	60°C
095	95°C ± 5	62°C
100	100°C ± 5	65°C
105	105°C ± 5	68°C
110	110°C ± 5	71°C
115	115°C ± 5	74°C
120	120°C ± 5	77°C
125	125°C ± 5	80°C
130	130°C ± 5	83°C
135	135°C ± 5	86°C
140	140°C ± 5	90°C
145	145°C ± 5	94°C
150	150°C ± 5	98°C
155	155°C ± 5	115°C
160	160°C ± 5	120°C
170	170°C ± 5	125°C
180	180°C ± 5	130°C
